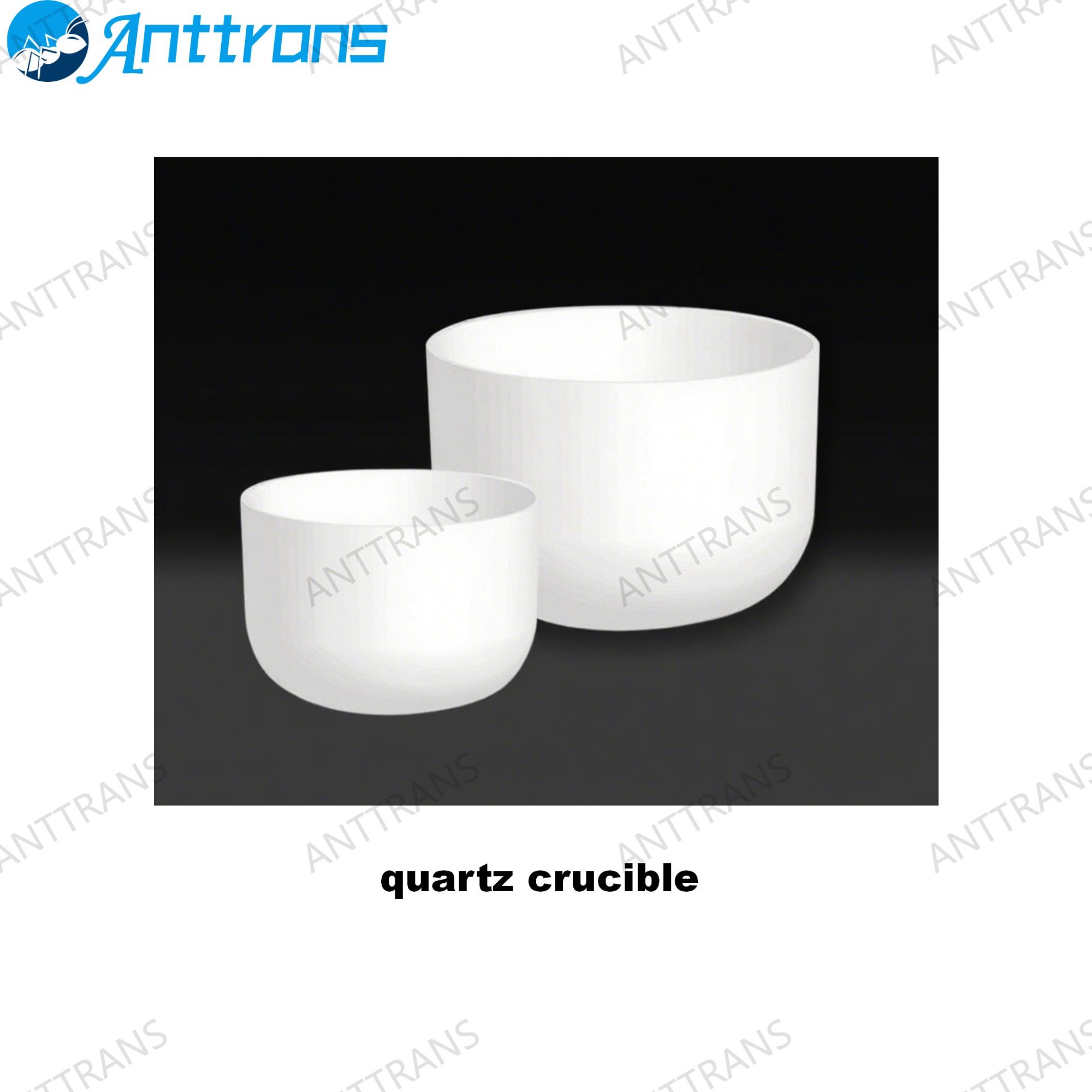

(可定制) 石英坩埚和石英制品

A Comprehensive Analysis of the Application Fields of Quartz Crucibles
I. Semiconductor Industry: The Foundation of Precision Manufacturing
• Crystal Growth
• Epitaxial Growth
II. Photovoltaic Industry: Powering the Renewable Energy Revolution
• Polysilicon Ingot Casting
• Single-Crystal Silicon Ingot Growth
III. Optical Industry: Enabling Advanced Optical Technologies
• Optical Crystal Growth
• Optical Component Processing
IV. Chemical and Metallurgical Industries: Supporting Diverse Industrial Processes
• Chemical Reaction Vessels

Metallurgical Analysis

Specification	Outer Diameter(D)	Height(H)	Straightwall thickness(T1)	R-corner thickness(T3)	Bottom Thickness(T4)	R1	R2
14	355±2	280±2	9±2	9±2	9±2	90	381
16	406±2	305±2	9±2	10±2	9±2	90	406
18	455±2	350±2	9±2	10±2	9±2	90	460
20	505±2	380±2	10±2	11±2	10±2	90	510
22	556±2	365±2	11±2	12±2	11±2	110	558
24	610±2	415±2	12±2	13±2	12±2	120	610
26	655±2	456±2	12±2	13±2	12±2	120	660
28	710±2	485±2	12±2	13±2	12±2	120	710
32	810±3	500±2	13±2	14±2	13±2	120	810
36	945±3	620±2	15±2	20±2	15±2	160	945
